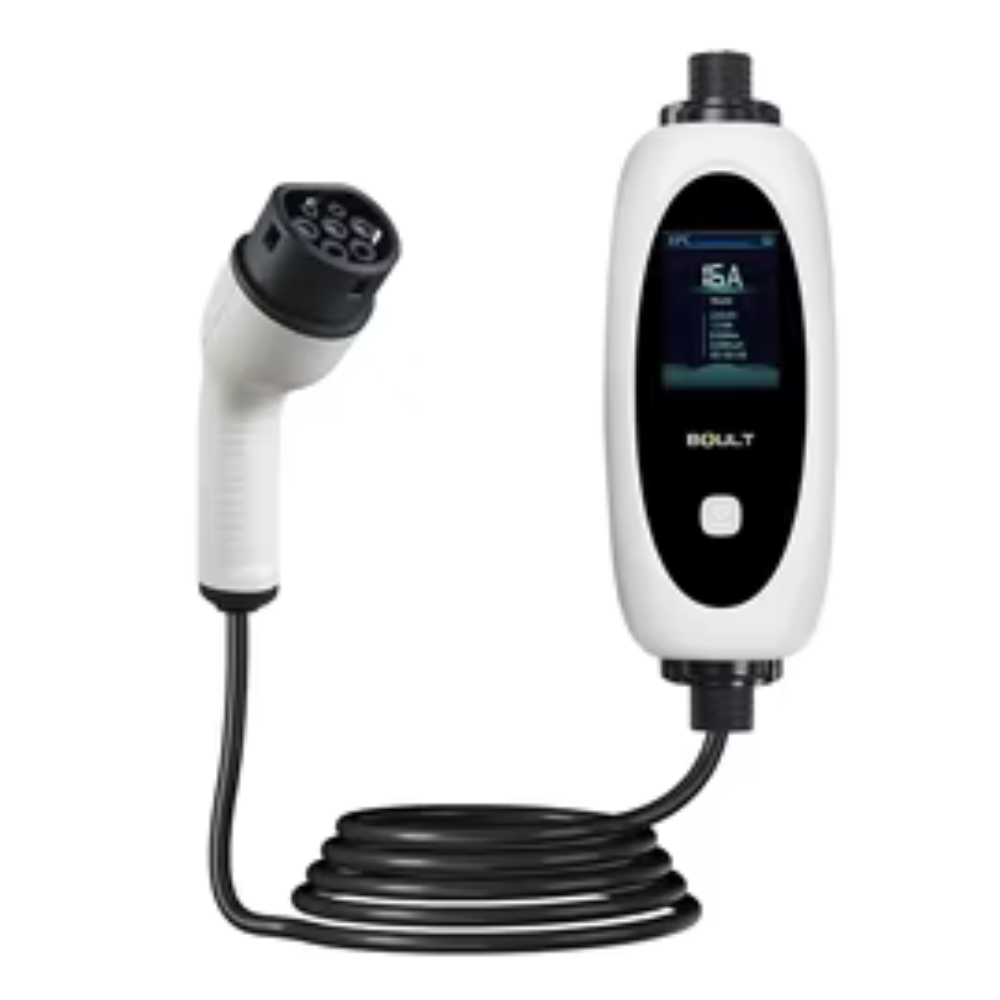

| Item | Boult-DP01-1P-32A |
| Size | 200mm*80mm*55mm |
| Package Size | 400mm*400mm*110mm |
| Weight | < 3kg |
| Housing Material | Acrylic, PC |
| Mating Cycle Life | > 10,000 times |
| Input/output Voltage | 110V ~ 250V |
| Max Output Current | 16A / 32A |
| Rated Power | 3.5kW ~ 7kW |
| Frequency | 50Hz / 60Hz |
| RCD | Type A + DC6mA |
| User Interface | LED Indicator, 1.8 inch LCD Screen |
| Temperature | -30℃ ~ +55℃ |
| Humidity | 5% ~ 95% |
| Altitude | < 2000m |
| Cooling Methods | Natural Cooling |
| Electrical Protection |
Over/Under Voltage Protection, Over Temperature Protection, Lightning Protection, Leakage Protection, Short Circuit Protection
|
| Ingress Protection Rating | IP65 |
| Flame Retardant Rating | UL94 V0 |
| Cable Material | TPU |
| Cable Length | 5m (Customize) |
