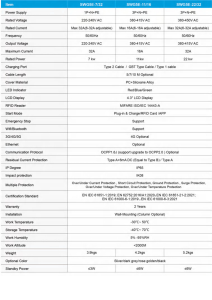

| Item | SWG5E-7/32 | SWG5E-11/16 | SWG5E-22/32 |
| Rated Power | 7 kw | 11kw | 22 kw |
| Maximum Current | 32A | 16A | 32A |
| Power Supply | 1P+N+PE | 3P+N+PE | 3P+N+PE |
| Rated Voltage | 220-240V AC | 380-415V AC | 380-450V AC |
| Rated Current | Max 32A(6-32A adjustable) | Max 16A(6-16A adjustable) |
Max 32A(6-32A adjustable)
|
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Output Voltage | 220-240V AC | 380-415V AC | 380-415V AC |
| Charging Port |
Type 2 Cable / GBT Type Cable
|
||
| Cable Length |
5/7/10 M Optional
|
||
| Cover Material |
PC+Siloxane Alloy
|
||
| LED indicator | RedBlue/Green | ||
| LCD Display |
4.3″ LCD Display
|
||
| RFID Reader |
MIFARE ISO/IEC 14443-A
|
||
| Start Mode |
Plug-in & Charge/RFID Card /APP
|
||
| Emergency Stop | Support | ||
| Wifi | Optional | ||
| 3G/4G/5G | 4G Optional | ||
| Ethernet | Optional | ||
| Bluetooth | Support | ||
| Communication Protocol |
OCPP1.6J (support upgrade to OCPP2.0 ) Optional
|
||
| Residual Current Protection |
Type A+6mA DC (Equal to Type B) /Type A
|
||
| IP Degree | IP55 | ||
| Impact protection | IK08 | ||
| Multiple Protection |
OverUnder Current Protection , Short Circut Protection, Ground Proiection . Surge Protection.
|
||
|
Over/Under Vollage Proteclion, OvenUnder Temperaiure Proleciion
|
|||
| Certification Standard |
ENIEC 61851-1:2019:EN 62752:2016/A1:2020, EN IEC 61851-21-2.2021:
|
||
|
EN IEC 61000-6-1:2019 ,EN IEC 61000-6-3-2021
|
|||
| Warranty | 2 Years | ||
| Installation |
Wall-Mounting (Column Optional)
|
||
| Work Temperature | -30℃~50℃ | ||
| Storage Temperature | -40℃~70℃ | ||
| Work Humidity | 5% -95%RH | ||
| Work Altitude | <2000M | ||
| Weight | 3.9kgs | 4.2kgs | 5.2kgs |
| Optional Color |
Silver/Dark Grey/Rose Golden
|
||
| Dynamic Loading Balance(DLB) |
CT DLB Optional
|
||
| Standby Power | ≤3W | ≤6W | ≤6W |
AC Chargers
Suntree SWG5

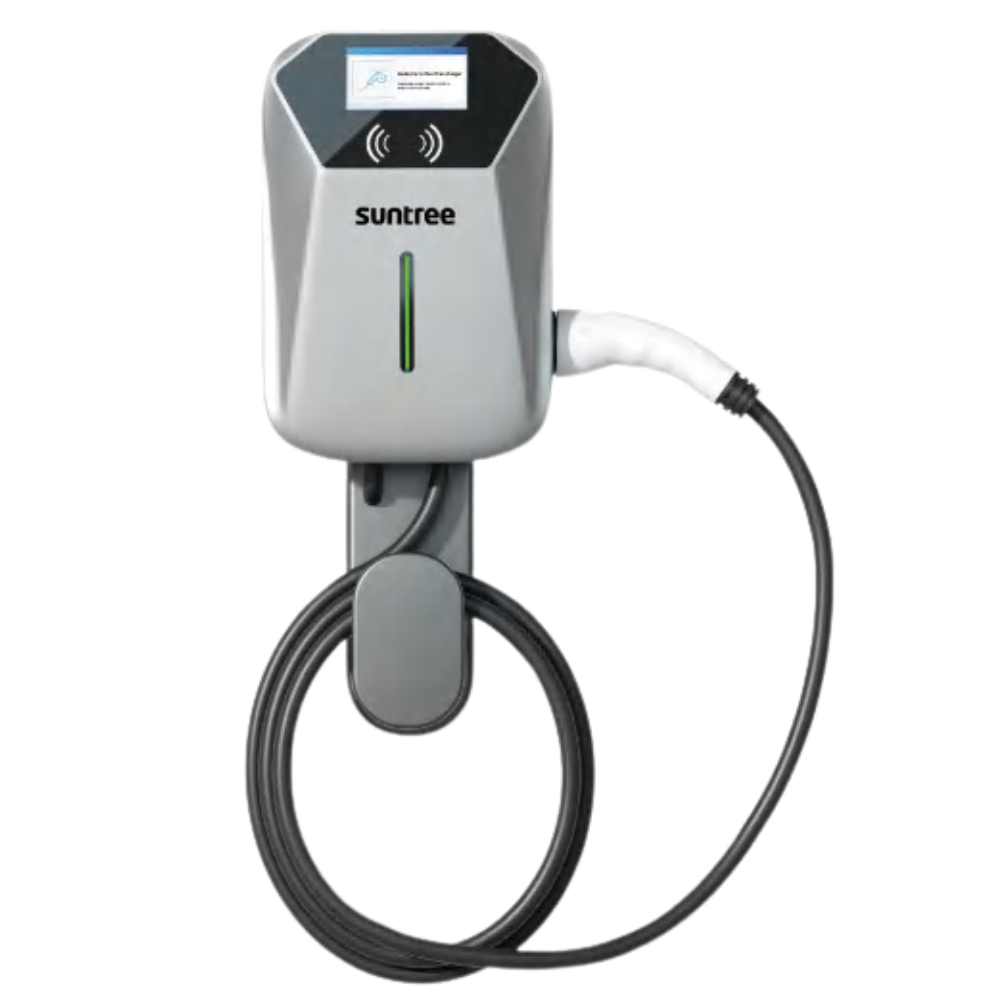

& Free ShippingThe AC EV Charger SWG5 is a powerful and reliable electric vehicle charging solution designed for both residential and commercial environments. Built with advanced EV charging technology, this unit supports Type 1, Type 2, and GB/T charging standards, making it compatible with a wide range of electric vehicles across South Africa.
Designed for convenience and performance, the SWG5 features a sleek wall-mounted design that fits seamlessly into homes, estates, and business premises. Its plug-and-play functionality allows for easy operation, while smart control features enable users to manage charging sessions, adjust current settings, and monitor performance through a connected application.
The charger is engineered with advanced safety protection, including over-temperature and short-circuit protection, as well as automatic shut-off once charging is complete. This ensures safe, efficient, and reliable charging for everyday use.
With flexible installation options, the SWG5 can be installed as a wall-mounted or floor-standing unit, making it suitable for a variety of environments such as residential garages, commercial parking areas, and fleet charging setups.
Whether you are looking for a dependable home EV charger or a scalable solution for business use, the AC EV Charger SWG5 delivers efficiency, safety, and convenience for modern electric vehicle charging needs.
Charger Types:
SWG5E-7/32: 7Kw
SWG5E-11/16: 11Kw
SWG5E-22/32: 22Kw
